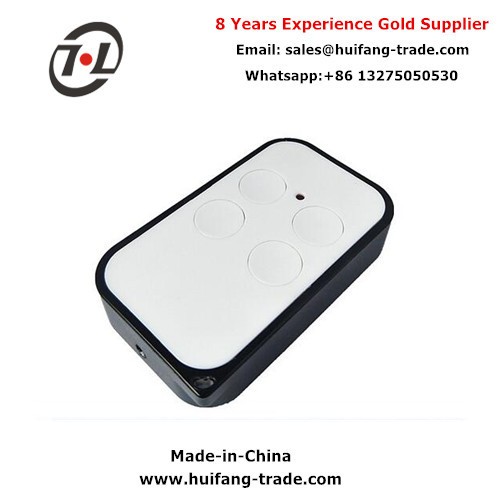

4-channel universal low multi-frequency garage door and window remote control Automatic identification of 27mhz~40mhz

4-channel universal low multi-frequency garage door and window remote control Automatic identification of 27mhz~40mhz

Auto-scan Frequency from 27 mhz to 40 mhz.

PERMITTED TRANSMISSION FREQUENCY:

26.720MHZ     26.975MHZ     26.995MHZ     27.015MHZ     27.195MHZ

27.545MHZ     27.575MHZ     27.745MHZ     29.700MHZ     29.800MHZ

29.875MHZ     30.075MHZ     30.275MHZ     30.545MHZ     30.875MHZ

30.900MHZ     30.925MHZ     33.155MHZ     40.665MHZ     29.820MHZ

OPERATION MANUAL:

1) Press and retain pressing Button 1 and at the same time press 4 times Button 2.

2) Release both buttons. So LED will emit a quick flash every 2 secs.

3) Place the original remote control on the opposite of (see Figure 1.).

4) Press and retain the button to copy the original remote control and wait utill the LED of changes the way to flash (faster), it means that the code has been learnt. This may take a few seconds.

5) While the LED flashes, press button where you want to store the code just copied, until the LED switches off.

NOTE:

If the procedure is not successful or some errors occur, please wait for seconds and start the procedure again from point 1.

memory is completely rewritable.

To program the other channels of , repeat the same procedure from the beginning (point 1).
